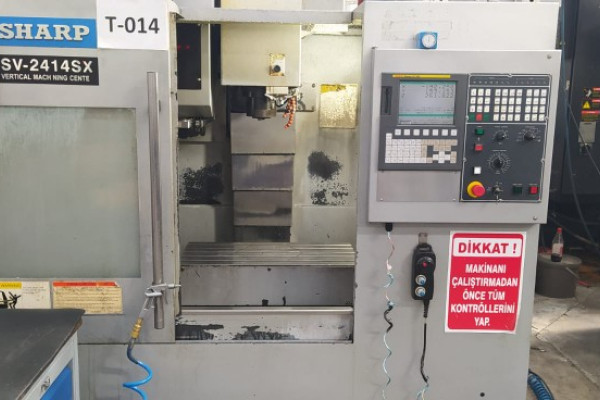

Sharp Sv 2414 Sx

Fiyatı: 27.000 Euro

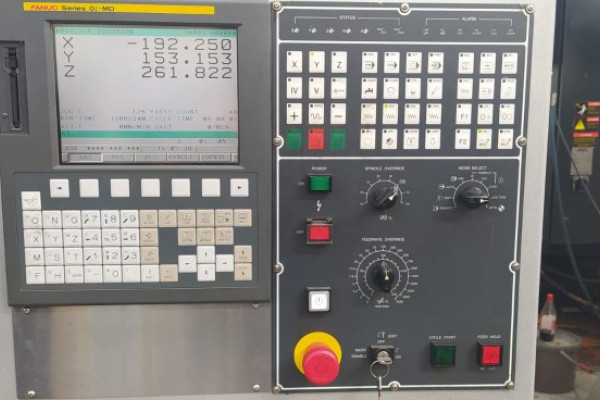

Kontrol Sistemi

FANUC

Travel

X-axis: 24.0 inch / 610 mm

Y-axis: 14.0 inch / 356 mm

Z-axis: 18.2 inch / 460 mm

Spindle nose to table: 3.1-20.94 inch / 78.8-530 mm

Spindle center to column: 16.9 inch / 430 mm

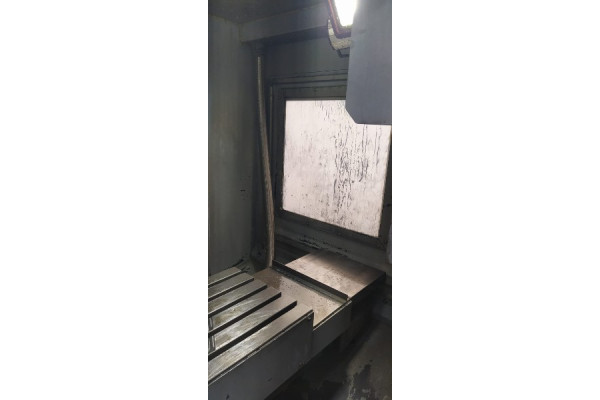

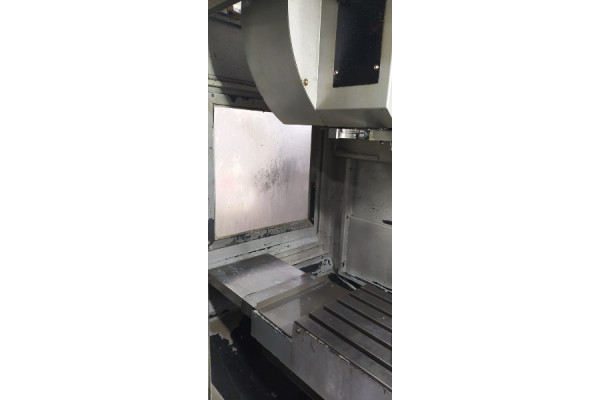

Table

Masa alanı: 28.0 x 13.8 inch / 710 x 350 mm

Maksimum iş parçası ağırlığı: 770 lb / 350 kg

Spindle

Speed: 10.000 rpm

Taper: CAT40

Driving Type: Belt Drive

Feed Rate

Rapid Traverse: X/Y/Z : 590.6 ipm / 15.000 mm/min

Cutting feed rate: 0.04 - 393.7 ipm /1 - 10.000 mm/min

Motor

Spindle Motor (cont/30 min): 9.3/10.7 hp / 7/8 kw

Automatic tool changer

Magazine type: Side Mount

Magazine capacity: 24

Method of tool selection: Random

Maximum tool diameter: 3.0 inh / 76.2 mm

Without adjacent tool: 5 inch / 127 mm

Maximum tool length: 12.0 inch / 304.8 mm

Maximum tool weight: 15.4 lb / 7 kg

Tool change time (tool to tool): 2.7 sec

Tool change time (chip to chip): 6 sec

Air blast when making tool change: Standard

Accuracy

Positioning Accuracy: ± 0.00016 inch / 0.004 mm

Repeatability Accuracy: ± 0.00012 inch / 0.003 mm

Machine Size

Width (w/o chip conveyor): 78,7 inch / 2,000 mm

Depth (w/o chip conveyor): 85,0 inch / 2,160 mm

Height: 91,5 inch / 2,325 mm

Weight: 7,260 inch / 3300 mm

Door opening: 25,0 inch / 635 mm

Coolant System

Number of flood coolant nozzles: 2

Coolant tank capacity: 42 gal / 160 L

Chip pan: Standard

Air blower nozzle (for cutting dry): 1

Power Requirement

Electrical: 220V (with transformer) 3 Phase / 20 KVA / 60 Hz

Air: 6 CFM @ 88psi
